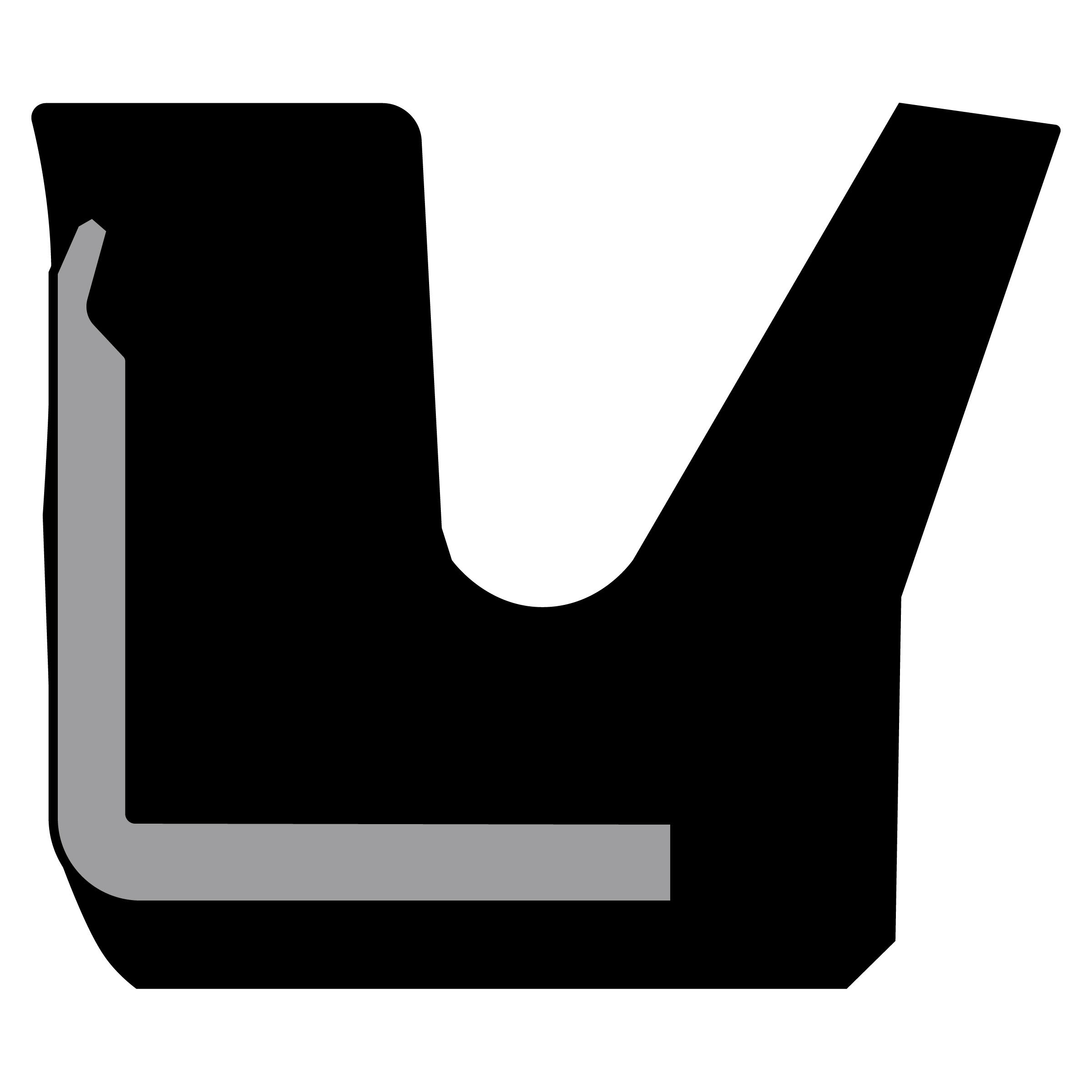

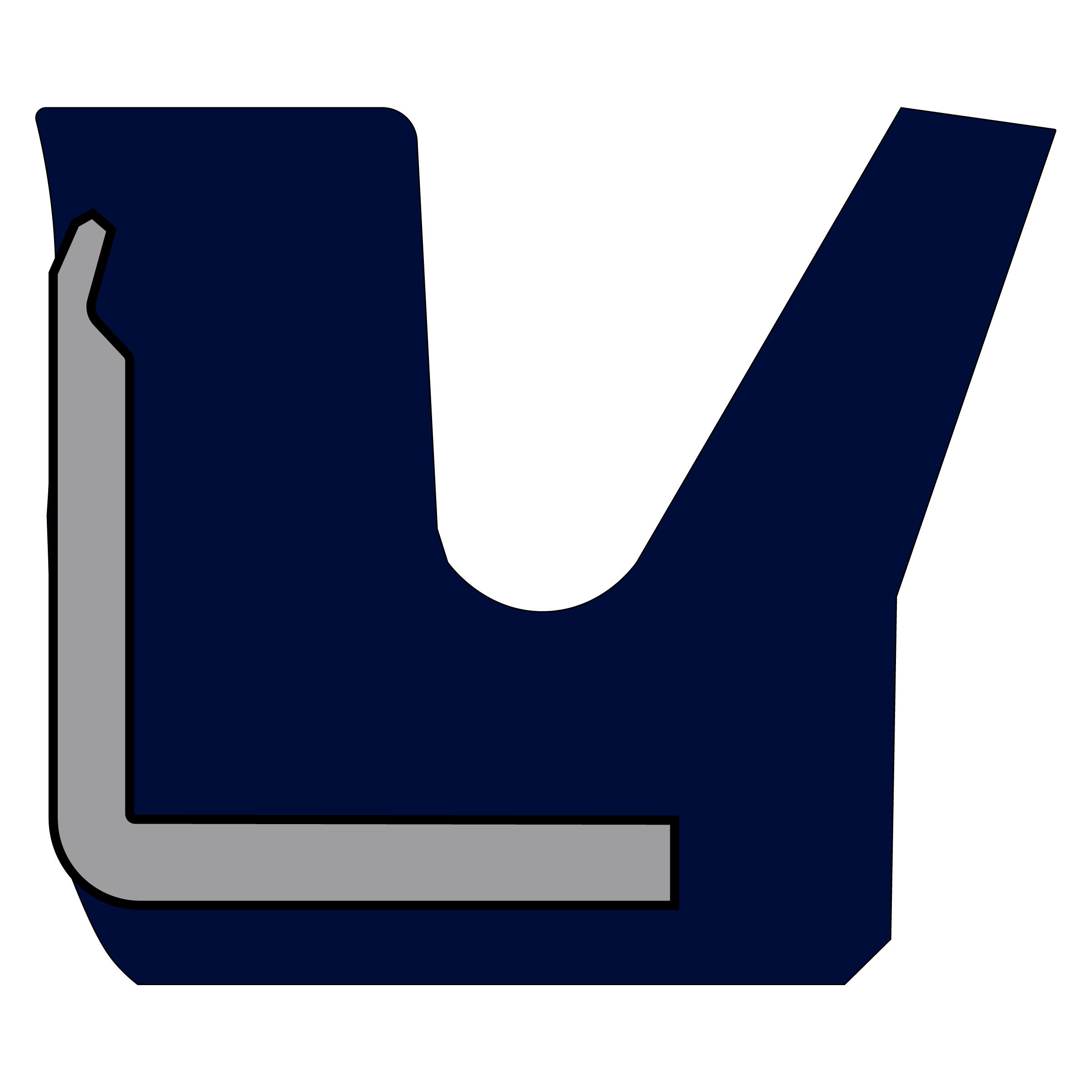

DWC
MATERIAL：PU+STEEL
TEMP.：-31°F~230°F
SPEED：3.2ft/s
APPLICATION INDUSTRY：
| ITEM | ID | OD | H | ||
| * | DWC-0.500 | 0.5 | 1 | 0.25 | |
| DWC-1.000 | 1 | 1.437 | 0.25 | ||
| * | DWC-0.625 | 0.625 | 1.125 | 0.312 | |
| * | DWC-0.750 | 0.75 | 1.25 | 0.312 | |
| * | DWC-0.875 | 0.875 | 1.375 | 0.312 | |
| * | DWC-1.000 | 1 | 1.5 | 0.312 | |
| * | DWC-1.125 | 1.125 | 1.625 | 0.312 | |
| * | DWC-1.250 | 1.25 | 1.75 | 0.312 | |
| * | DWC-1.375 | 1.375 | 1.875 | 0.312 | |
| * | DWC-1.500 | 1.5 | 2 | 0.312 | |
| * | DWC-1.625 | 1.625 | 2.125 | 0.312 | |
| * | DWC-1.750 | 1.75 | 2.25 | 0.312 | |
| * | DWC-1.875 | 1.875 | 2.375 | 0.312 | |
| * | DWC-2.000 | 2 | 2.5 | 0.312 | |
| * | DWC-2.125 | 2.125 | 2.625 | 0.312 | |
| * | DWC-2.250 | 2.25 | 2.75 | 0.312 | |
| * | DWC-2.375 | 2.375 | 2.875 | 0.312 | |
| * | DWC-2.500 | 2.5 | 3 | 0.312 | |
| * | DWC-2.625 | 2.625 | 3.125 | 0.312 | |
| * | DWC-2.750 | 2.75 | 3.25 | 0.312 | |
| * | DWC-3.000 | 3 | 3.5 | 0.312 | |
| * | DWC-3.250 | 3.25 | 3.875 | 0.312 | |
| * | DWC-3.500 | 3.5 | 4.125 | 0.312 | |
| * | DWC-3.750 | 3.75 | 4.375 | 0.312 | |
| * | DWC-4.000 | 4 | 4.625 | 0.312 | |
| * | DWC-4.250 | 4.25 | 4.875 | 0.312 | |
| * | DWC-4.500 | 4.5 | 5.125 | 0.312 | |
| DWC-5.000 | 5 | 5.625 | 0.312 | ||
| DWC-7.000 | 7 | 7.75 | 0.312 | ||
| DWC-2.125 | 2.125 | 2.875 | 0.375 | ||
| * | DWC-4.500 | 3.437 | 4.5 | 0.437 | |
